Description

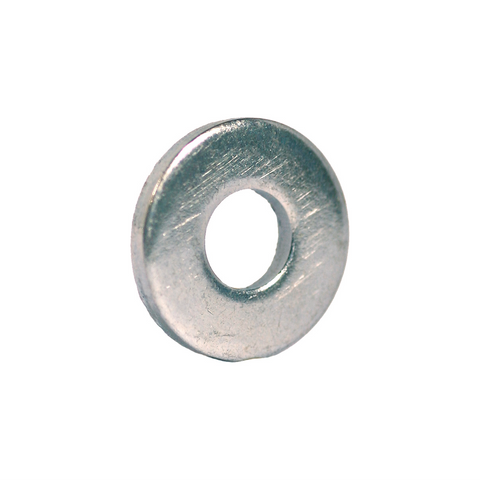

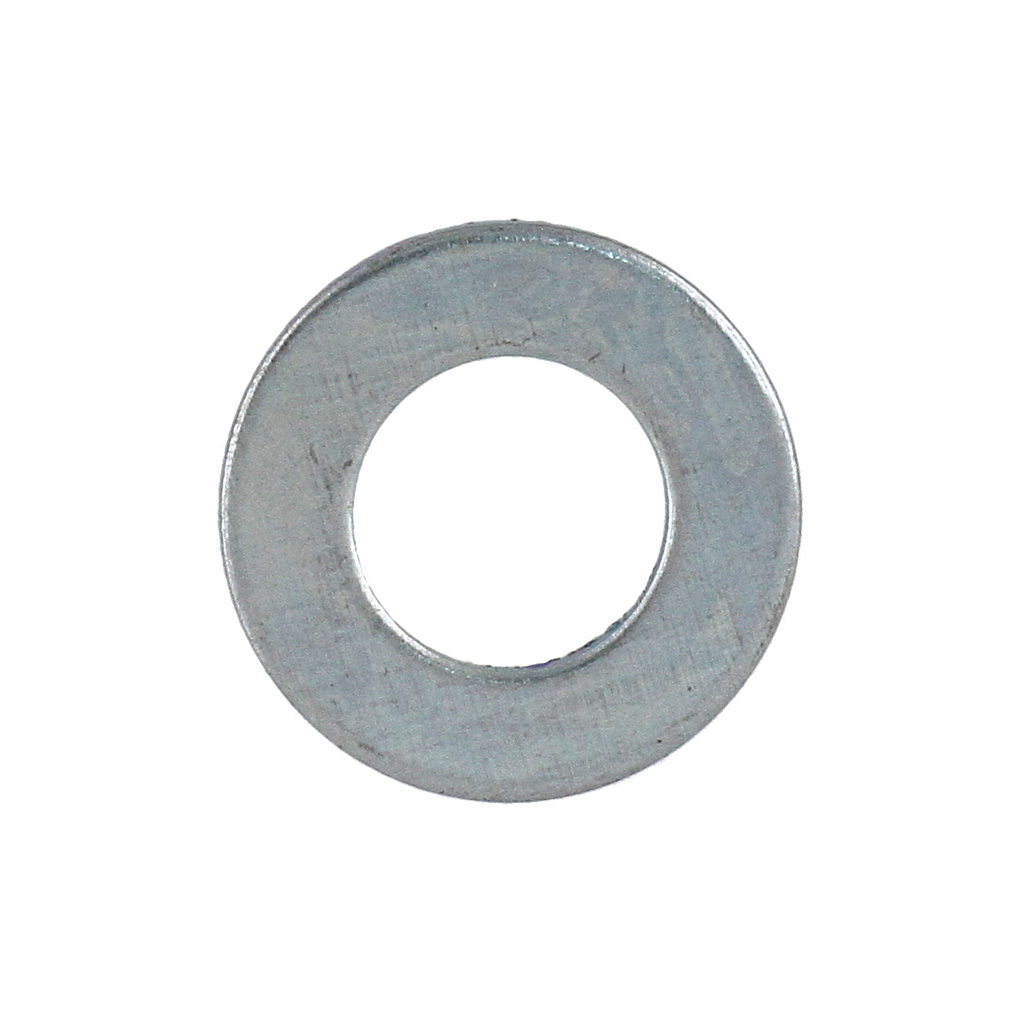

Ruwag Flat Washers are used underneath the head of a bolt or nut to distribute the forces applied when tightening.
QUESTIONS & ANSWERS
Ask a Question-
I have a flat 15mm x 7mm x 1mm washer. Do you have? I measured the width.
Good Morning
Thank you for the enquiry
Please see below dimensions
Description
ID
OD
Thickness
Flat Washer Zinc Plated 3mm
3.33mm
6.78mm
0.60mm
Flat Washer Zinc Plated 4mm
4.33mm
8.92mm
0.78mm
Flat Washer Zinc Plated 5mm
5.33mm
10.02mm
0.78mm
Flat Washer Zinc Plated 6mm
6.43mm
12.39mm
0.78mm
Flat Washer Zinc Plated 8mm
8.49mm
16.89mm
0.99mm
Flat Washer Zinc Plated 10mm
10.23mm
20.67mm
1.14mm
Flat Washer Zinc Plated 12mm
13.15mm
23.61mm
1.45mm
Flat Washer Zinc Plated 16mm
17.15mm
29.48mm
1.73mm
Flat Washer Zinc Plated 20mm
21.10mm
36.90mm
1.96mm
