Anchors
Have a look at the chart below to choose the correct sized Anchor.
Fastener sizing chart

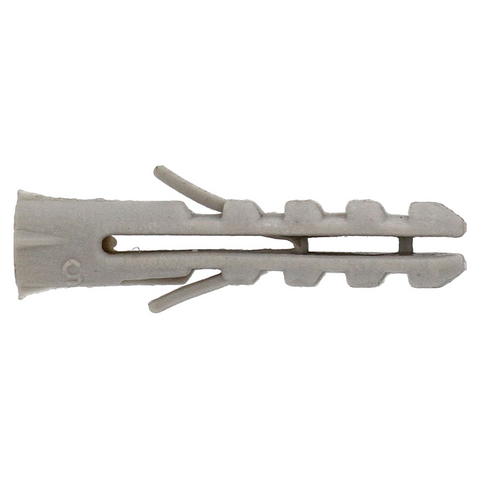

Nylon Wall Plugs
| Size | Coach Screw Size | Screw Size | Drill Size |
|---|---|---|---|
| 5mm | 3-4mm | 5mm | |
| 6mm | 3.5-5mm | 6mm | |
| 7mm | 5mm | 4-5.5mm | 7mm |
| 8mm | 6mm | 5-7mm | 8mm |
| 10mm | 8mm | 6.5-8.5mm | 10mm |
| 12mm | 10mm | 8-10.5mm | 12mm |
| 14mm | 12mm | 14mm |

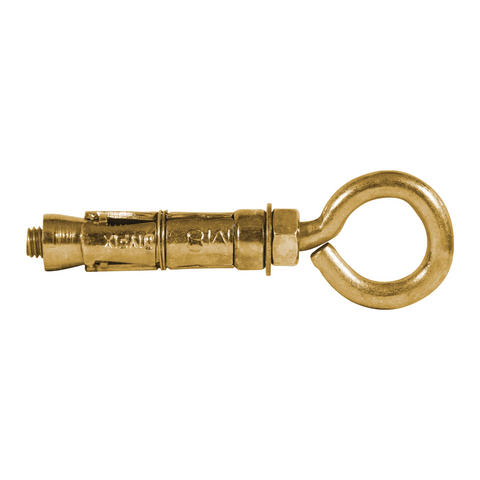

Expansion Bolts
| Size | Drill Size | Spanner Size |
|---|---|---|
| M5 | 10mm | 8mm |
| M6 | 12mm | 10mm |
| M8 | 14mm | 13mm |
| M10 | 16mm | 17mm |
| M12 | 20mm | 19mm |
| M16 | 25mm | 24mm |

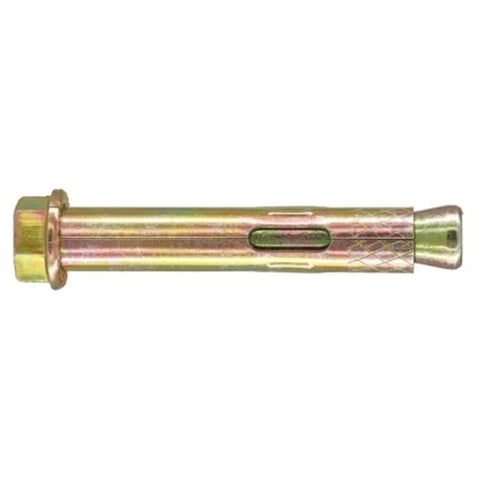

Sleeve Anchors
| Size | Drill Size | Spanner Size |
|---|---|---|
| M8 | 8mm | 10mm |
| M10 | 10mm | 13mm |
| M12 | 12mm | 15mm |
| M16 | 16mm | 18mm |
Frame & Nail in Anchors
| Size | Drill Size |
|---|---|
| 5mm | 5mm |
| 6mm | 6mm |
| 8mm | 8mm |
| 10mm | 10mm |
